Description
Features:
SMSL Q5 PRO pure digital amplifier adapt pure digital amplification technology, including audio mode
optical fiber, coaxial, computer USB, analog input.
Suitable for computer,LCD TV,top box,digital box,blue ray and HD-DVD equipment.There must be a one mode from various input mode to meet your demand.Each channel output 50W(2 channel in total)and meets high-definition Blu-ray and HD-DVD format for demanding audio interface standard with sampling rate 44.1-192K own testing.
Specifications:

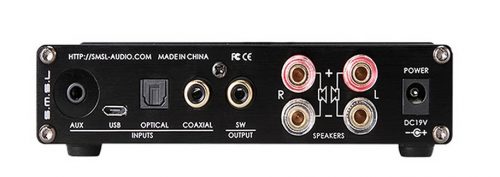

Input: Optical, Coaxial, Analog, Computer USB
Output: 2-channel (stereo)
Sampling rate: 44.1-192kHz (coaxial • Optical)
44.1-96kHz (computer USB)
Bit wide: 16-24Bit
Frequency response: 20Hz-22kHz
Impedance adaptation: 4-8 ohm
Maximum output power: 45W +45W（ 4 Ohm ）
25W +25W（8 Ohm ）
Adapter resistance: 4Ω-8Ω
THD+N: 0.05%
Dynamic Range: 102dB
SNR: 81dB
USB audio specification: 16-24bit/44.1KHZ-96KHZ
USB compatibility: Windows, Mac OS X
Power consumption: 102W (maximum)
Dimension：137X103X33mm(Do not include bulge)
Net Weight：1.1KG
Package list:
Q5 Pro unit * 1
USB cable * 1
User manual * 1
Pwer adapter * 1
Remote control * 1
Please Note: The SMSL Q5 ships with a plastic film covering the display, please remove this film before use.
Anonymous –
Fine sound quality with Audioengine P4 speakers. Compact, has all the most common inputs, bar HDMI.
Remote is undersized. Much like the apple TVs remote. But I have the amp placed on a desk, so I don’t use it.
Recommended for anyone who need a small amp.
Anonymous (verified owner) –
This amp that does everything it promises. There is a lot of hate for Class D amps on the internet, so I was hesitant to buy this instead of a vintage AB, but this seems fine to power bookshelf speakers in a small/medium room. I consider it a good purchase.
